£990.00 ex.VAT
Ideal For: Server, network, instrumentation, retail, VoIP and telecommunication applications
Advanced single-phase, continuous online (VFI type) UPS system for support and protection of critical systems such as servers and networks, retail and warehousing systems, laboratory and instrumentation applications, VoIP and telecommunication applications. Now with a unity output power factor, enabling greater protection from a smaller capacity unit, the PW 1000PRO combines high reliability with easy set-up and low running costs. Available in a compact tower or 19″ rack-mountable unit, both feature hot-swappable batteries for increased resilience.
PRO version is compatible with pre-existing PW 1000 battery cabinets via use of an adaptor cable – contact our sales team for more details.
Lead time: 1 – 2 weeks, but many items are in stock and once ordered we will contact you to arrange delivery.
Advanced, robust uninterruptible power supply featuring unity output power factor, for greater output from the same input, and sophisticated battery management technology.
The REHLKO PW 1000PRO automatically manages the end-discharge voltage of the internal batteries, preventing deep discharge during power failures that might otherwise result in permanent battery damage.
In addition, the UPS has a user configurable reserve limit. This enables the system to be configured to turn off at a pre-specified point whilst still having sufficient reserve to operate for a period of additional time if turned back on again at a later point.

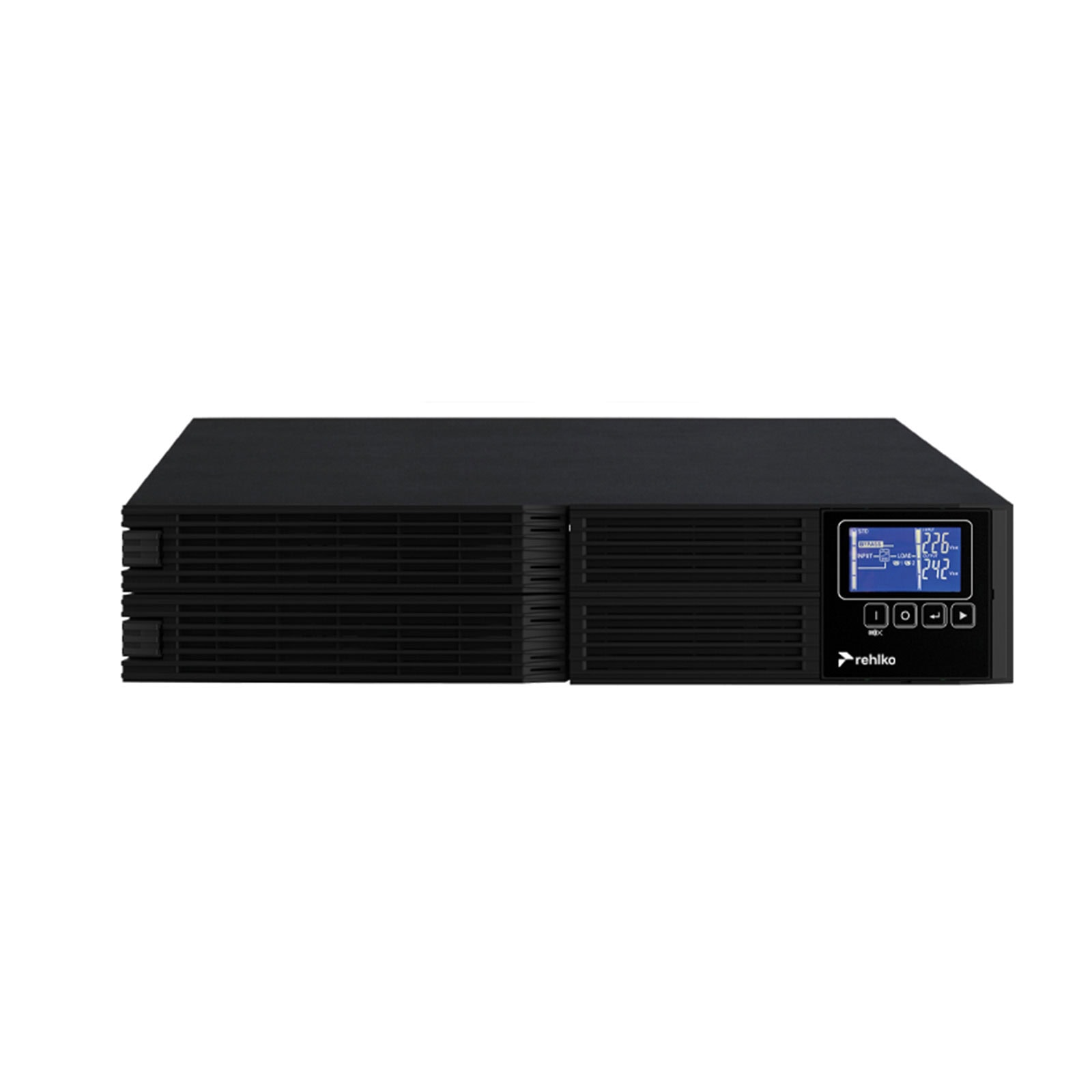

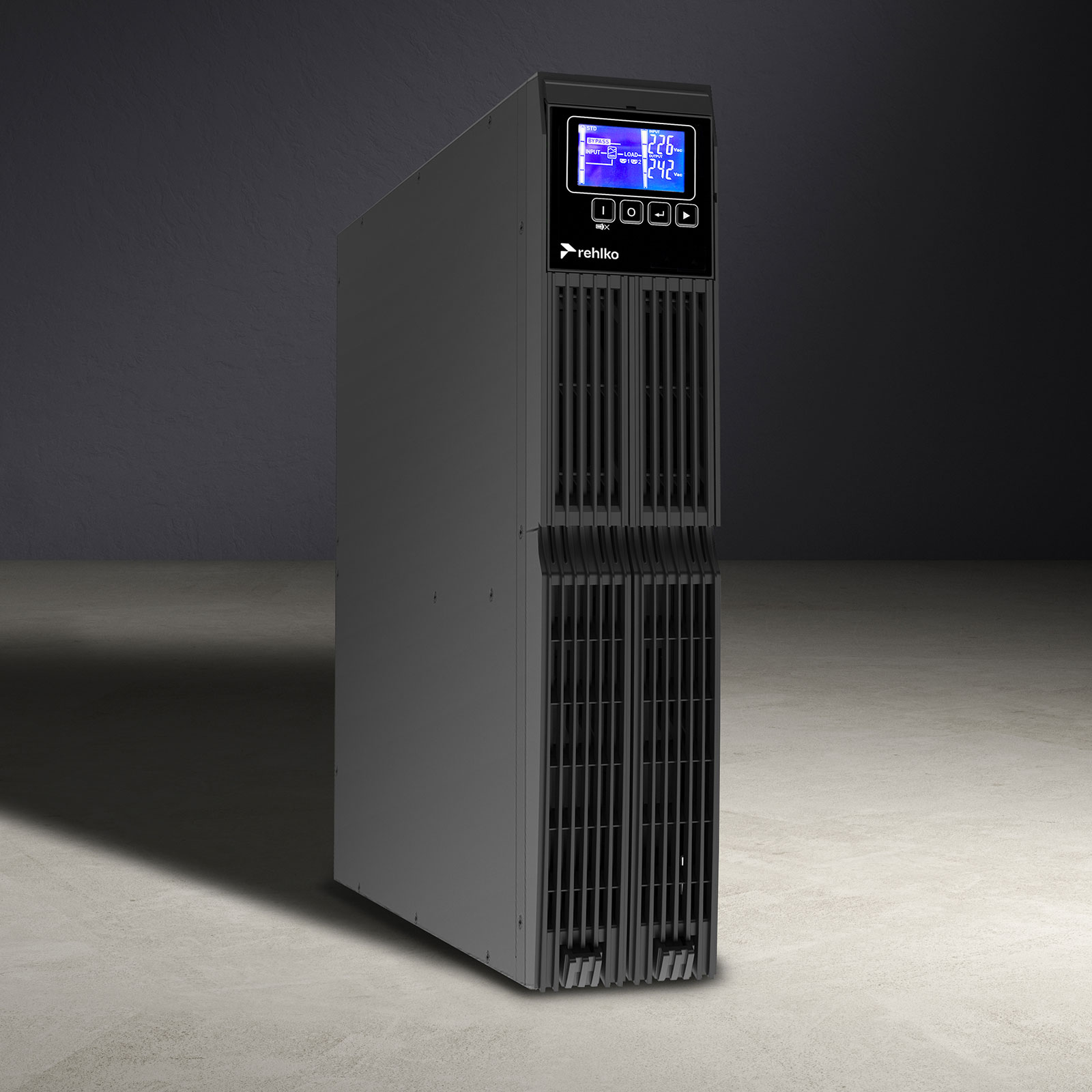

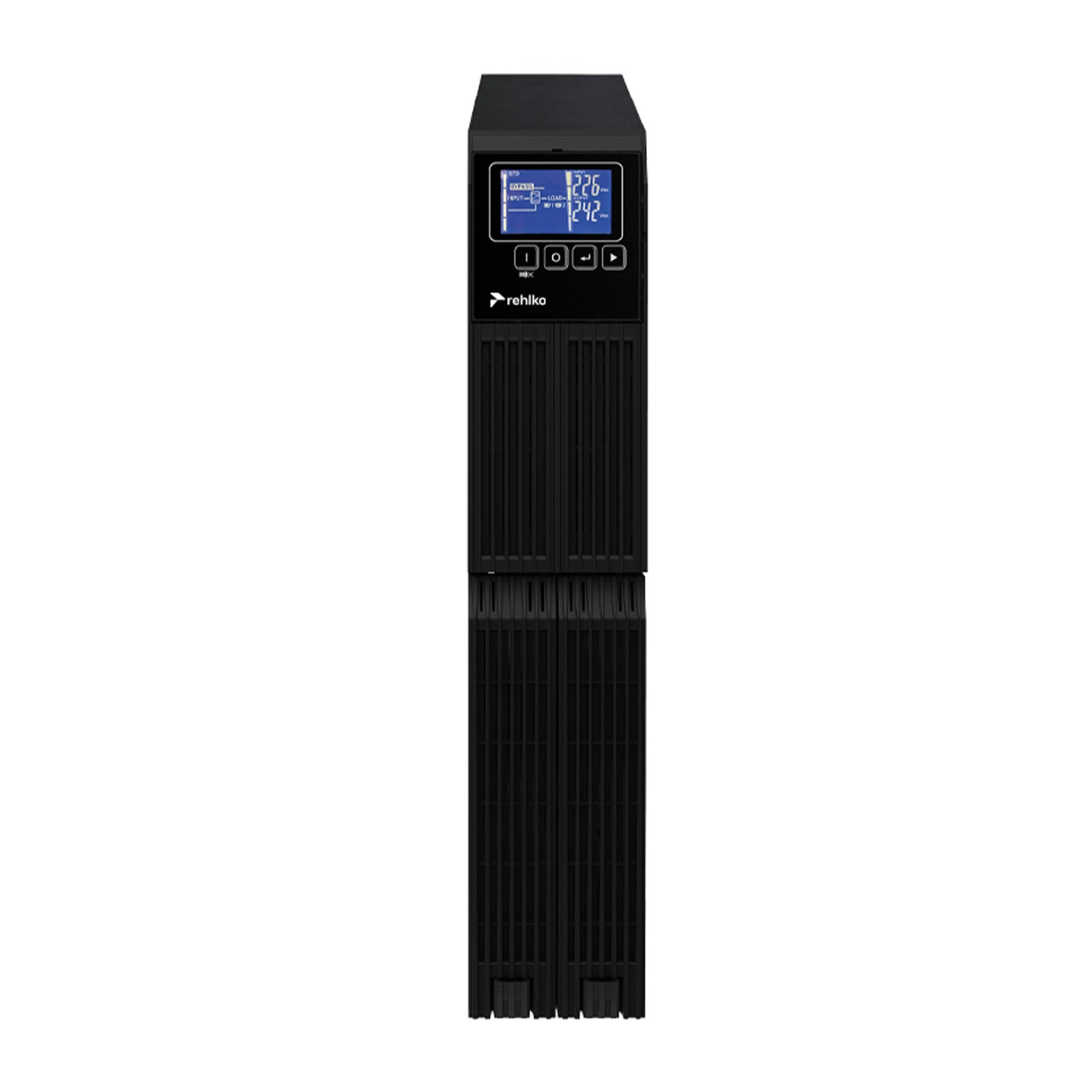

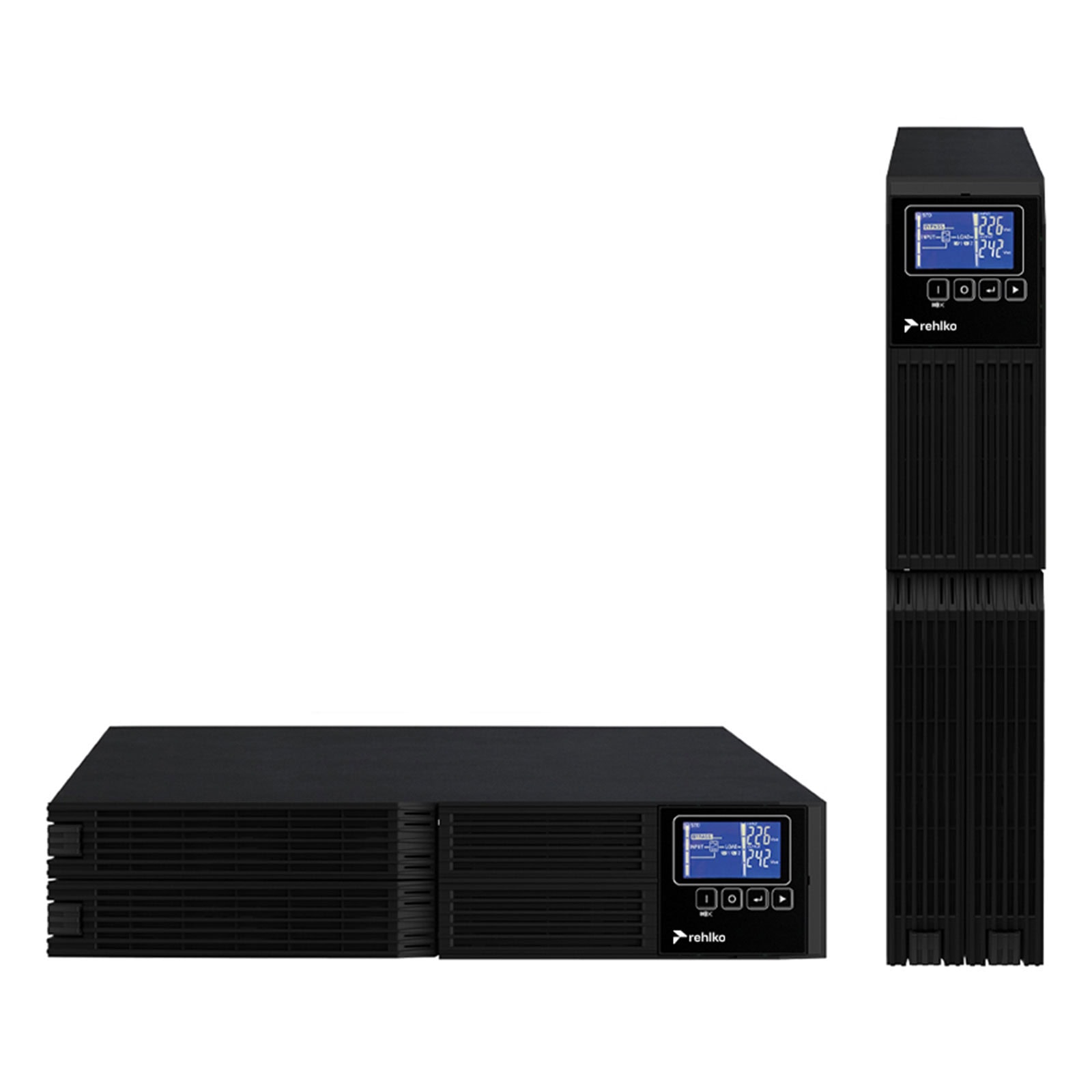

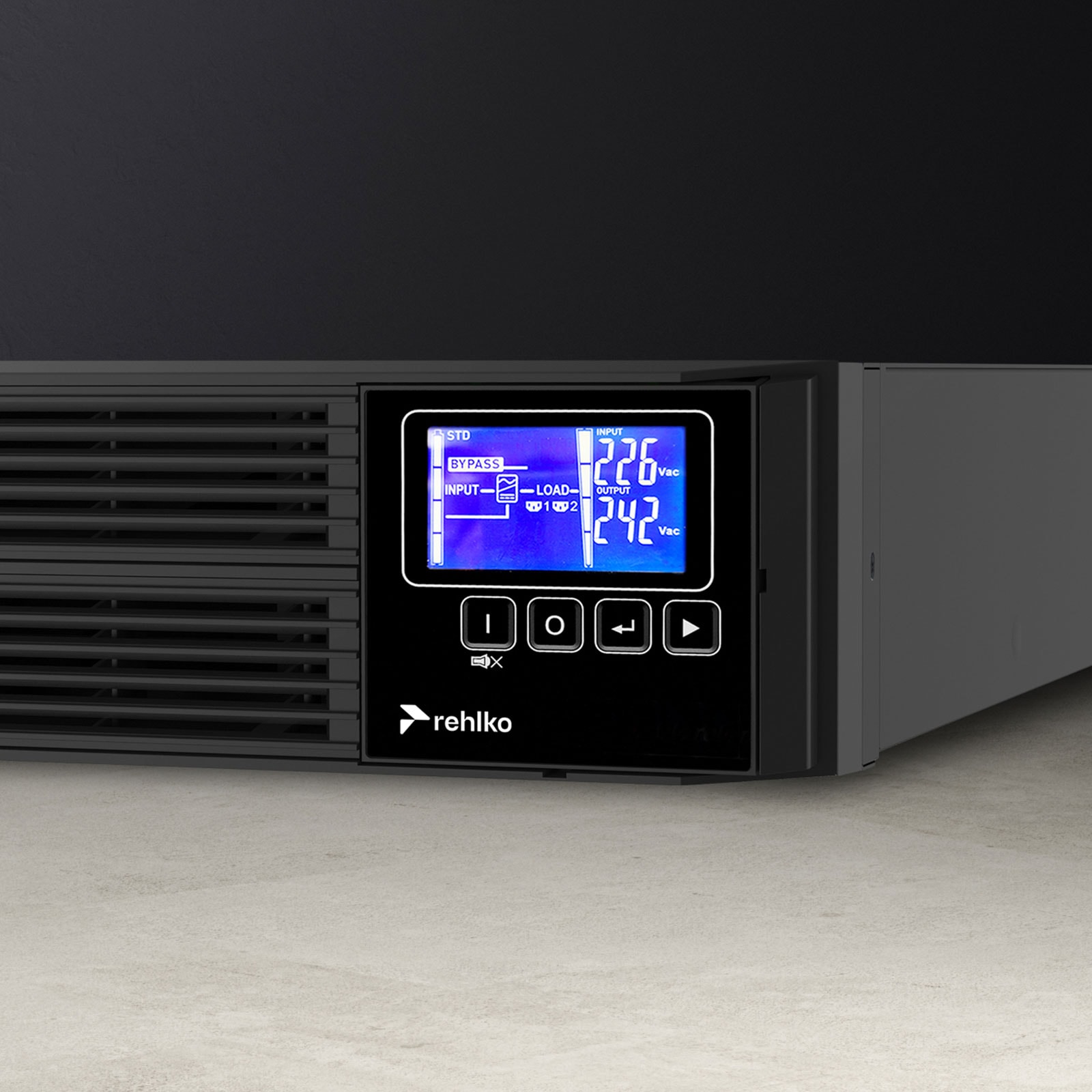

With a user-rotatable display the same unit can be deployed for tower or rack use depending on the application and environment.
To allow communication to and from the PW 1000PRO it features USB, RS232 and EPO (emergency power off) ports as standard. These can be supplemented with optional SNMP card with Modbus communications or a dry contact relay card.
Whilst some UPS systems may need to switch to battery power when the mains supply moves outside a narrow tolerance band, the PW 1000PRO has a wide operating voltage and frequency range. This enables it to continue to draw power from the mains supply for longer, reducing the need to use battery power and ensuring a longer service life for them.
The REHLKO PW 1000PRO delivers high efficiency of up to 92% (1-2kW models) or 93% (3kW model) in continuous online mode and up to 98% in ECO mode. Combined with battery management technology to extend life and a low THDi, this ensures the REHLKO PW 1000PRO minimises ownership costs and reduces impact on the environment.
View the Refund Policy for Online Purchases here.
To request more details about the Rehlko PW 1000 make an enquiry using the form below or call us on 0800 731 3269.
| Weight | 27 kg |
|---|---|
| Actual kVA | 3kVA / 3kW |
| Type | Single-phase |
| Working mode | Online double conversion |
| Efficiency | Up to 93% VFI / 98% ECO |
| Maintenance bypass | Standard |
| Network/web interface | Option |
| Volt free contacts | Optional |
| Input current distortion THDi @100% load | < 5% |
| Input power factor @100% load | ≥0.99 |
| Transformerless | Yes |
| Standalone / Modular | Tower or Rack Mounted |
| Installation | Standard 13-amp UK plug fitted |
| Dimensions – mm | W440 x D640 x H88 (2U) |
See below current pricing for the Rehlko PW 1000PRO UPS range and accessories.
| Model No | Output Power, kW | Autonomy (mins at 50% / 70% / 100% load) | Dimensions in mm (WxDxH), rack orientation | Weight | Unit Price (GBP) |
|---|---|---|---|---|---|
| PW1000PRO/1 | 1 | 10 / 7 / 3 | 440 x 454 x 88 (2U) | 16 kg | £448 |
| PW1000PRO/2 | 2 | 11 / 7 / 3 | 440 x 640 x 88 (2U) | 25 kg | £926 |
| PW1000PRO/3 | 3 | 9 / 6 / 2 | 440 x 640 x 88 (2U) | 27 kg | £990 |
| Model No | Additional backup | Dimensions in mm (WxDxH), rack orientation | Weight | Unit Price (GBP) |
|---|---|---|---|---|
| PW 1000PRO/1/EXT | For 1kW, 24 additional minutes at 80% load | 440 x 464 x 88 (2U) | 19 kg | £344 |
| PW 1000PRO/2/EXT | For 2kW, 23 additional minutes at 80% load | 440 x 583 x 88 (2U) | 42 kg | £568 |
| PW 1000PRO/3/EXT | For 3kW, 18 additional minutes at 80% load | 440 x 583 x 88 (2U) | 42 kg | £568 |
| Model No | Description | Unit Price (GBP) |
|---|---|---|
| PW1000/RMK | Rack mounting kit | £50 |
| PW1000/RC | Relay card with 6 dry contacts (to be installed in SNMP slot) | £59 |
| PW1000PRO/MiniSNMP | PW 1000PRO SNMP Card | £222 |
| PW1000-MBP 3kVA | Bypass module, 1-3kVA | £189 |
If your item was bought online, over the phone or by mail order, as a customer you have consumer returns rights under the Consumer Contracts Regulations. The Consumer Contracts Regulations gives you a cancellation period that starts the moment you place your order and ends 14 days from the day you receive your goods. You then have a further 14 days from the date you notify the retailer that you’d like to cancel your order to return the goods to them.
From initial contact through installation, service, maintenance to disposal, Rehlko provides its customers with an unrivalled single source for complete power protection.
Call: 0800 731 3269 or Email: [email protected]
Alternatively fill out the enquiry form and our sales team will get in touch with you:
